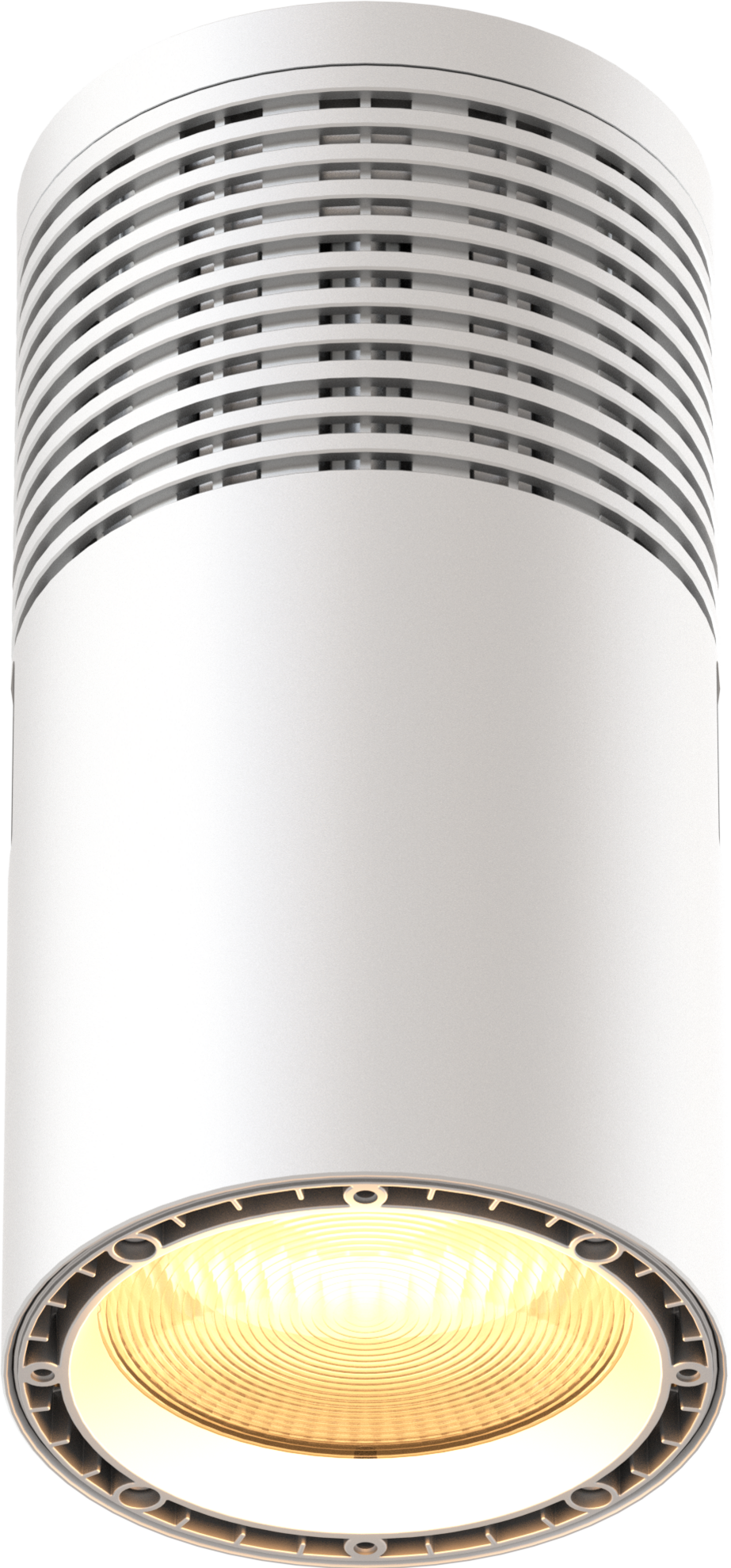

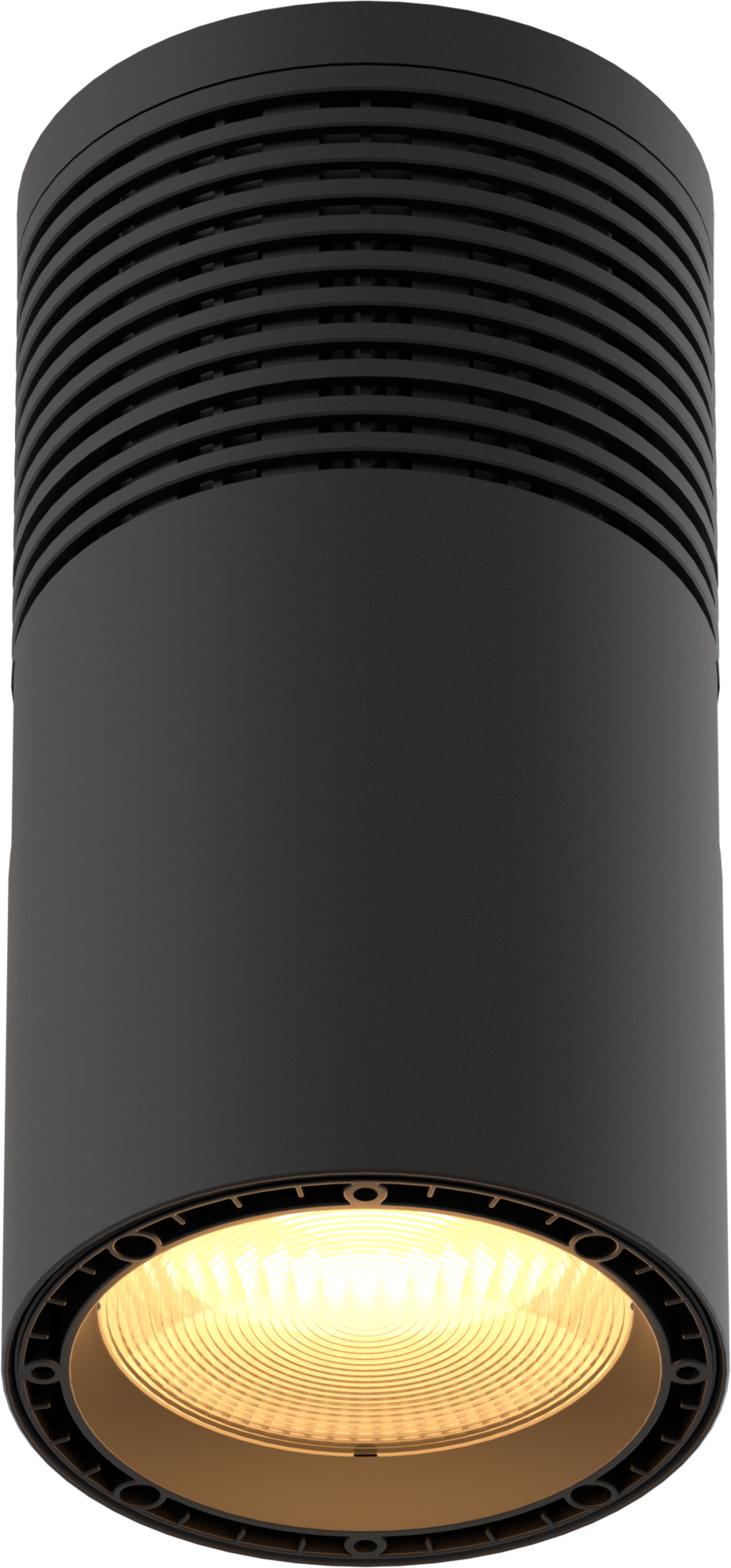

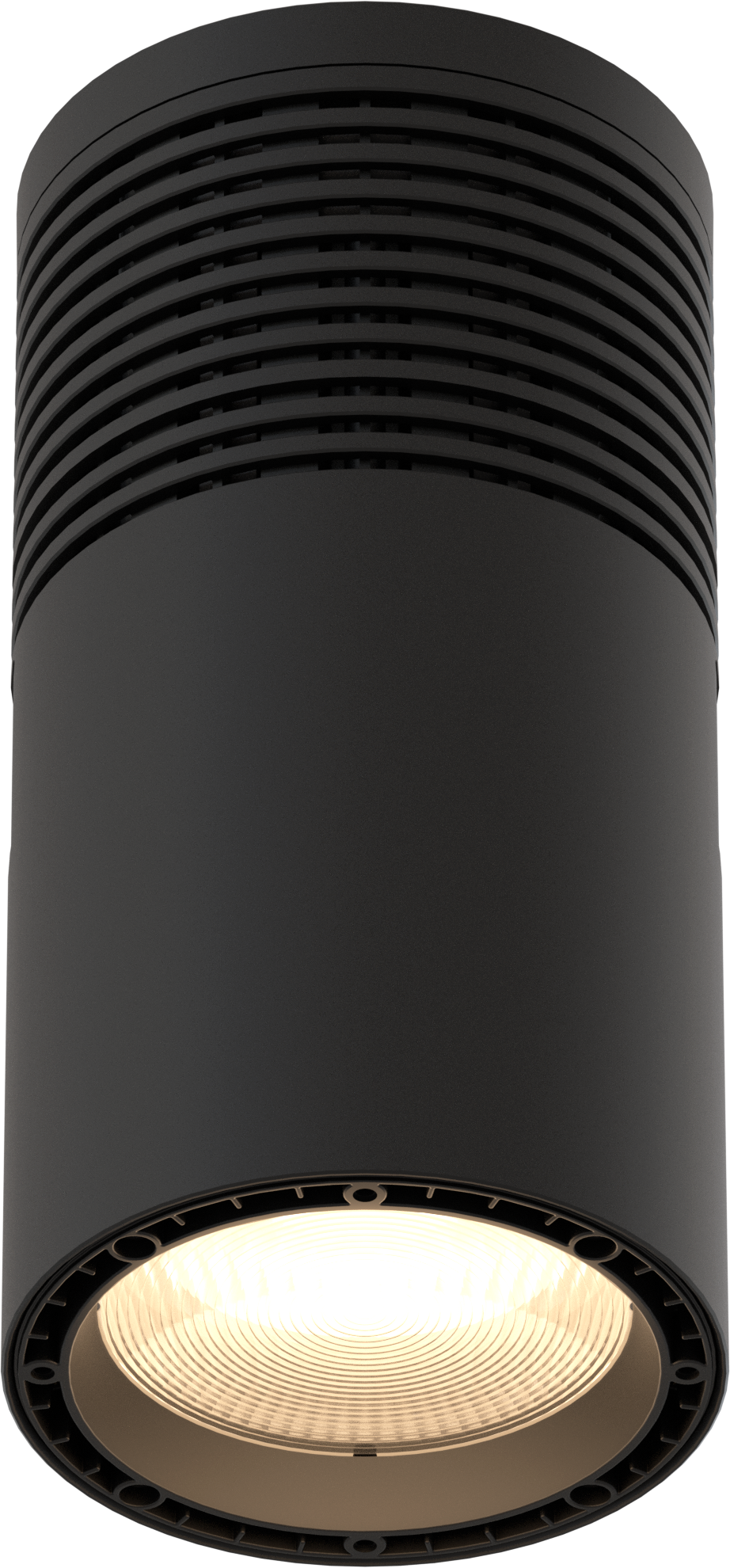

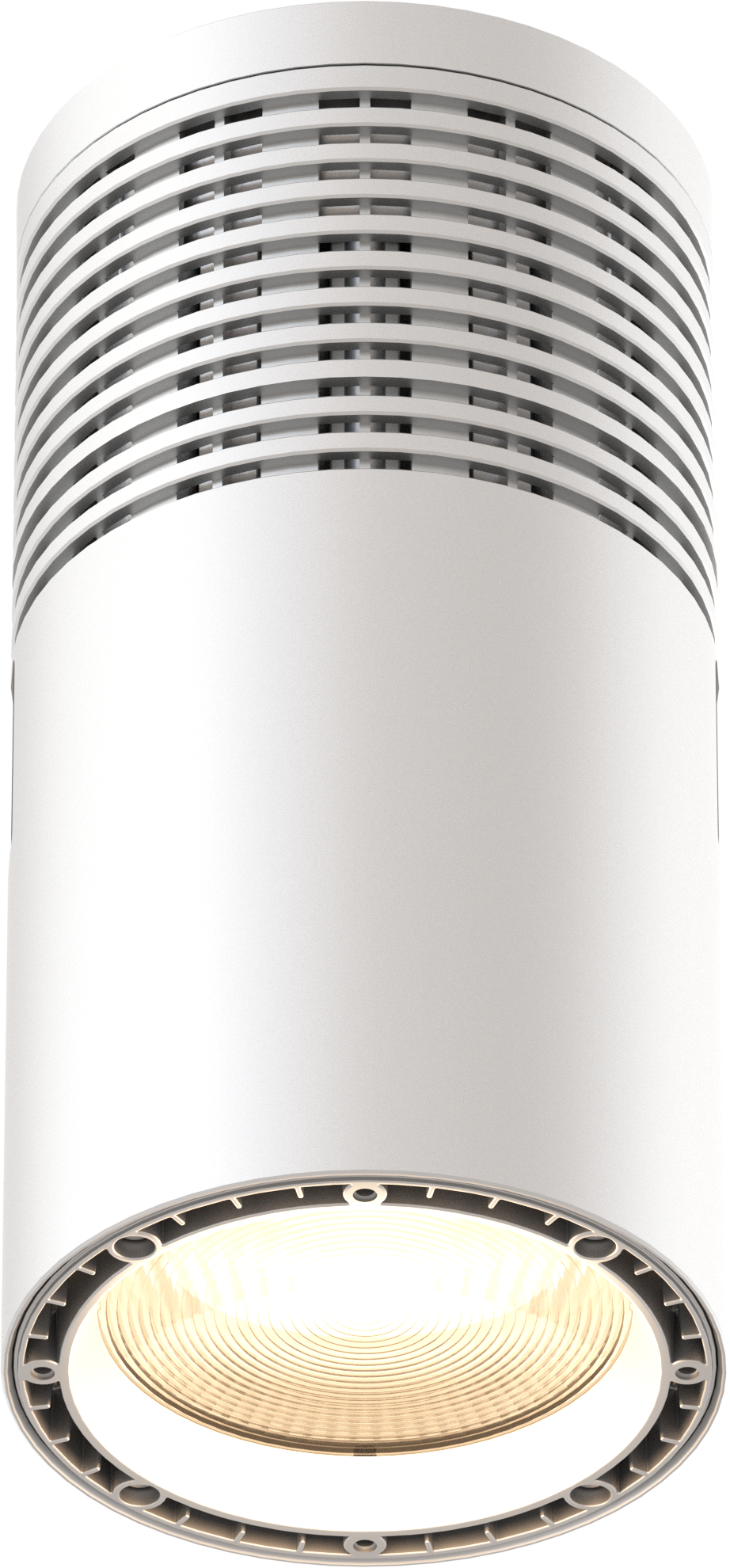

ECL PENDANT S
House light with 50W 3000K, 4000K and 5600K LED source with passive cooling
The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.
Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.
User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.
Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.
LIGHT SOURCE
Source: 50W COB LED
CCT: 3000K (TU), 4000K (NW), 5600K (DY)
Luminous flux: (TU) 2'814 lm; (NW) 3'851 lm; (DY) 4'045 @full
Lux: (TU) 796 lx; (NW) 1'079 lx; (DY) 1'116lx @5 m full
CRI: (TU) 98,1; (NW) 95,3; (DY) 95,2
R9: (TU) 91,8; (NW) 89,2; (DY) 91,8
TLCI: (TU) 98; (NW) 96; (DY) 96
TM30 Rf: (TU) 93,4; (NW) 92,3; (DY) 90,9
TM30 Rg: (TU) 99,1; (NW) 101,3; (DY) 100,8
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
Beam angle: 20°
Field angle: 40°
Lens diameter: 100mm / 3.94''
Lens type: fresnel lens
Other: see available accessories
DYNAMIC EFFECTS
Static mode: selection of static dimmer
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body
Body colour: RAL 9004 or RAL 9010
CONTROL
Protocols: DALI Type6, DMX512, RDM
DMX channels: UNO / DUO / Standard / Extendedchannel
Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Other: 16bit control of dimmer
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1-30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: DC 48V for emergency light use
Max power consumption: 60W
Output (at 230V): 21 units on a single power line
Power factor: > 0,93
PHYSICAL
IP rating: 20
Cooling: Heatsink with heat pipes, passive cooling and fan-free
Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
Signal connection: Screw terminal block
Power connection: Screw terminal block
Dimensions (WxHxD): 135x300x135mm / 5.31''x11.81''x5.31''
Weight: 3kg / 6.61lbs
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
1 x ECLPENDANTS
1 x User Manual
NOTE: no hanging bracket ECLPENDSHGBRK on board to the fixture
